BK Clear/MC

Barrel BK

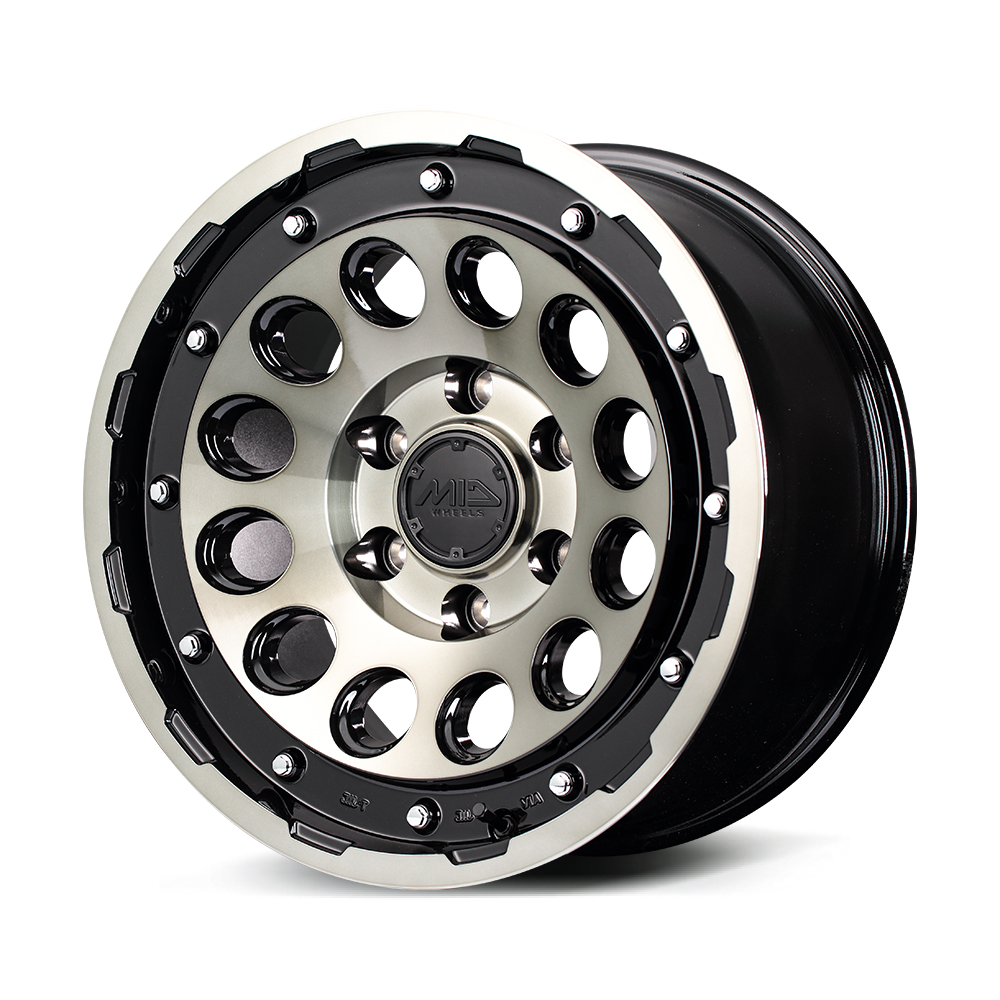

Military heavy-duty 12-hole design

12-hole dish design with military heavy duty feel. The new dish design with military taste has 12 holes, giving it a rugged and wild presence. This wheel design is targeted at SUVs, CrossCountry vehicles, Jimny, and other vehicles that are in trend and have a lot of running ability, and matches the rugged design of the all-terrain tires. While the design exudes ruggedness, it is also delicately crafted. The vertical walls of the halls are ribbed to form a three-dimensional structure with depth. In addition, the letters placed in the center are precisely sculpted to the limits of manufacturing technology in pursuit of realism. A special pierced bolt is driven in on the outer circumference to emphasize the military feel.

Spec

Product Name

H12

Size

17inch

Construction Method

Cast 1pc. Wheel

Safety Standards

JWL, JWL-T
SAE
DOT-J

Color

Black Clear/MC
Barrel Black

Included

Air Valve, Center Cap

Size / Spec

SIZE :

P.C.D. :

SIZE INSET Hub
Clearance
(mm)
HOLE P.C.D. HUB
BORE
(φ)
DRILL
(φ)
COLOR PRICE LOAD
(lbs)
CODE
17x8.5J 10 (42) 5 127 71.7 34-15 Barrel BK ¥64,500 2,500 4560235011654
17x8.5J 10 (42) 5 127 71.7 34-15 BK Clear/MC ¥66,500 2,500 4560235011586
17x8.5J 0 (52) 5 127 71.7 34-15 Barrel BK ¥64,500 2,500 4560235011661
17x8.5J 0 (52) 5 127 71.7 34-15 BK Clear/MC ¥66,500 2,500 4560235011593
17x8.5J 10 (42) 6 135 87 34-15 Barrel BK ¥64,500 2,500 4560235011678
17x8.5J 10 (42) 6 135 87 34-15 BK Clear/MC ¥66,500 2,500 4560235011609
17x8.5J 0 (52) 6 135 87 34-15 Barrel BK ¥64,500 2,500 4560235011685
17x8.5J 0 (52) 6 135 87 34-15 BK Clear/MC ¥66,500 2,500 4560235011616
17x8.5J 10 (42) 6 139.7 106.1 34-15 Barrel BK ¥64,500 2,500 4560235011692
17x8.5J 10 (42) 6 139.7 106.1 34-15 BK Clear/MC ¥66,500 2,500 4560235011623
17x8.5J 0 (52) 6 139.7 106.1 34-15 Barrel BK ¥64,500 2,500 4560235011708
17x8.5J 0 (52) 6 139.7 106.1 34-15 BK Clear/MC ¥66,500 2,500 4560235011630
